Globecore offers transformer oil regeneration solution in MEA

transformer oil regenerationGlobecore CMM-12R unit for Transformer Oil Reclamation. (Image source: Globecore)Globecore GmbH, a company from Germany, manufactures equipment which  extends power transformer service life by 20 years.

Globecore protects and saves millions of dollars of investments in power transformers. This is achieved by transformer oil purification, which can be performed on site, with energized transformerOld oil is reused. Transformer oil is used in power transformers and oil filled switches. This oil insulates energized parts of the equipment, dissipates heat and extinguishes arcs.

The dangers of transformer oil contamination

Electric power experts agree that the lifetime of a transformer lasts only as long as the lifetime of its insulation system. During operation, transformer oil accumulates oxidation products and other contaminants. Oxygen and water in a dielectric fluid provoke oxidation even under perfect operating conditions. Solid particles of transformer construction materials are also a factor.

Oxidation is accompanied by formation of acids, acting on carbon and metals, forming aldehydes, alcohols and soapy metals. These form sediment on the insulation. Contaminants also increase the oil’s viscosity, degrading its heat dissipation function.globecore

Therefore, aging of transformer oil is the result of high temperature, oxygen and the electric field with the transformer construction materials. Important parameters (acidity, dissipation factor, dielectric strength) are sensitive to the aging process. The faster it goes, the faster they reach critical limits, making the oil unusable. Using such oil in a transformer is dangerous: the risk of failures and power interruptions becomes high.

What happens with used transformer oil

Waste transformer oil is quite harmful for the environment. Over 40 per cent of water contamination worldwide is caused by waste oil. One liter of spilled waste oil makes a million liters of groundwater undrinkable. Mass contamination by oil products kills plants and animals. Besides, water oil contains carcinogenic substances. Dumping of waste oil into the environment is unacceptable.

The solution is to restore used transformer oil to as good as new condition and reusing it. Beside the positive environmental effect, this also allows significant economy on purchasing new and disposing of oil transformer oil and increases transformer service life by 20 years and longer. At this time, the price tag of a transformer is several hundred thousand dollars on average. The cost of disassembling damaged equipment, transportation and installation of new equipment can reach into the millions.

Methods of transformer oil restoration

Let us look into some of the classic and new methods applied for restoration of used transformer oil.

Centrifuge. A centrifuge is a drum in a tightly sealed body. It contains many conical plates with openings. Such devices are used to remove moisture and solid particles. At one time, centrifuges were widely used in oil handling facilities despite their drawbacks, such as low capacity, complexity, intensive mixing of oil with air and large footprint. With time, compact portable oil restoration units of the required processing capacity have been developed. Therefore the number of centrifuges in operation began to decline.

Electric purification. This method involves the different influence of electrical field on moisture and contaminants in the oil with sedimentation of these on electrodes. Sedimented moisture and water are removed from the surface of the electrodes with oil and this mix is again supplied for purification. The process lasts until all contaminants are removed.

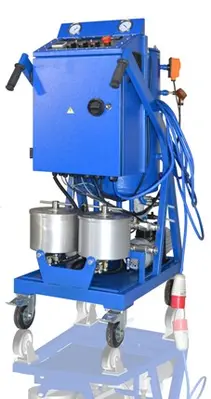

iiiiiglobecoreTranformer OIl Degassing Unit

Percolation. This method involves percolation of the waste oil through a layer of absorbent (most often silica gel) in a vertical cylindrical vessel. Using adsorbents offers good results, but the material must be disposed of or reactivated after the process. Oil saturated materials cannot be released into the environment.

Bleaching clay processing. Silica gel is produced by a series of chemical reactions, making the production process costly. An alternative is using naturally occurring materials, such as bleaching clay. Due to the porous structure, bleaching clay has good capture capability and can be used for continuous reclamation of transformer oil in filters on transformers and to restore oil drained from a transformer.

Globecore's environmentally friendly solutions

GlobeCore has developed and has been implementing technologies aimed at restoration of waste transformer and high voltage switch oil.

The company has also had successful experience in servicing power transformers of wind farms, both inland and offshore. The company offers a special range of products, finely tuned for this specific purpose.

Specifically, the CMM type oil purifier units allow to degas and filter transformer oil by processing the oil under vacuum, heating and passing a section of filters. The oil filtration unit reduces moisture content to less than 5 ppm, gas content to less than 0.1 and increases dielectric strength of the oil to 70 kV. The CMM type oil purifier units do not release any substance which would require special disposal or handling.

The CMM-R oil purifier units extend transformer life time by restoring the dielectric strength and chemical composition of transformer oil. This unit allows to reclaim the oil directly in an on-line transformer. This method also allows to remove sediment from the windings. The sorbent used is Fuller’s earth, the main advantage of which is the multiple use capability. The oil purifier facilitates continuous processing of transformer oil and savings on purchasing new and disposing of old oils. Projected Fuller’s earth service life is 300 reactivations, the equivalent of 1.5 – 2 years of operation. After the absorbent is exhausted, it is environmentally safe and can be disposed of accordingly.

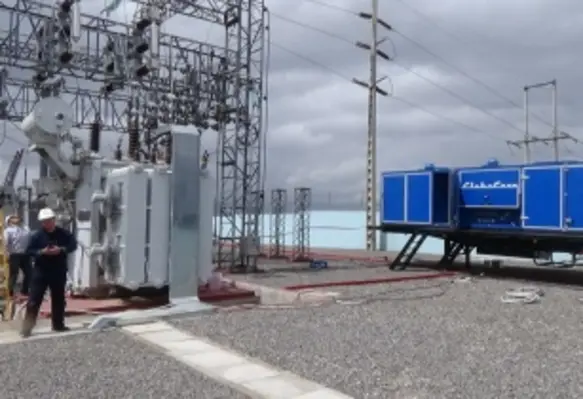

oilsssssTransformer Oil Regeneration Unit CMM-12R at electricity substation.

GlobeCore also offers environmental solutions for other adsorption based processes. Zeolite drying cabinet ZSC-15 allows to dry the zeolite to improve its adsorption performance and improve the dehydration of oil.

The CMM-4RP unit restores waste absorbent (bleaching clay, Fuller’s Earth etc), used in transformer oil reclamation units. The technologies used allow to reactivate the sorbent up to 10 times. After deactivation, the adsorbents contain no oil and can be disposed of regularly without harmful effects.

GlobeCore’s oil regeneration technology allows to:

save significantly on purchasing new and disposing of used oil products;

reduce the harmful environmental effects;

extend transformer service life 20 years and more.

Here are some numbers to further emphasize the economic efficiency of transformer oil restoration:

average transformer price per 1 KVA – US$8-15;

average market prices of oil reclamation of one liter of transformer oil – US$0.7-0.8;

average price of one liter of new transformer oil – US$1.5-2.

transformerOil before and after.

About GlobeCore; GlobeCore is a manufacturing company researching, developing and producing various oil and fluid processing systems for use in several different industries worldwide and is the developer of the Power Transformer Service Life Extension Program and the GlobeCore Oil Regeneration Process for servicing oil filled electric power transformers.

Contact Information: GlobeCore GmbH, Edewechter Landstraße 173, Oldenburg-Eversten, Deutschland, 26131

www.GlobeCore.com and www.GlobeCore.de
